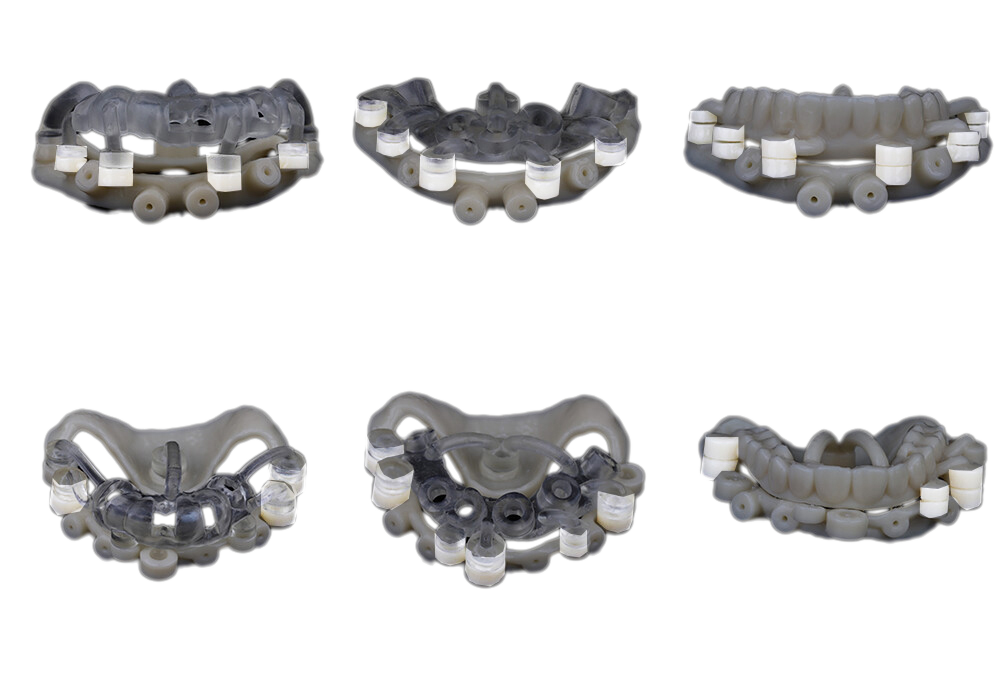

Magnetic Holders for Stackable and Magnetically Retained for
– Surgical Guides
– Bone Reduction and Osteotomy Guides
– Multi-Stage Surgical Procedures
– Guided Endodontic Surgery
– Maxillofacial Surgery & Orthognathic Surgery
– Prosthetic Alignment in Full-Arch Restorations
– Craniofacial Reconstruction & Custom Implants
– Magnetic Stackable Guides for Orthodontic Applications
and similar applications
Why Use Stacking & Magnetic Retention?
Improved Precision → Ensures accurate multi-step surgical workflows.
Time-Saving → Eliminates the need to reposition separate guides manually.
Enhanced Stability → Magnetic retention reduces the risk of misalignment.
Minimally Invasive → Allows for guided surgery with minimal surgical trauma.
These are the following sets
- 4x4mm version made for 4mm diameter and 4mm high magnets (18 pieces)

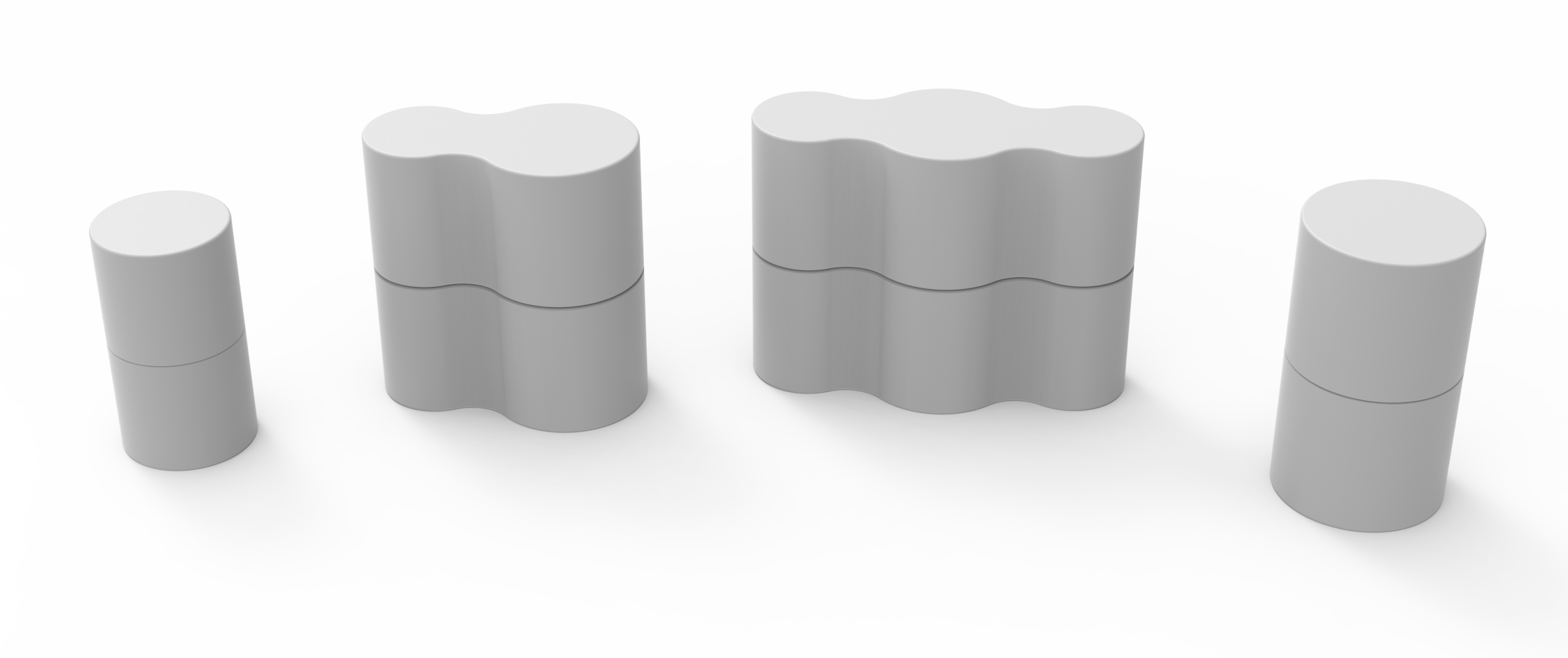

- 4x4mm Thin version made for 4mm diameter and 4mm high magnets (4 pieces) (4x4mm version with smallest possible volume for narrow spaces)

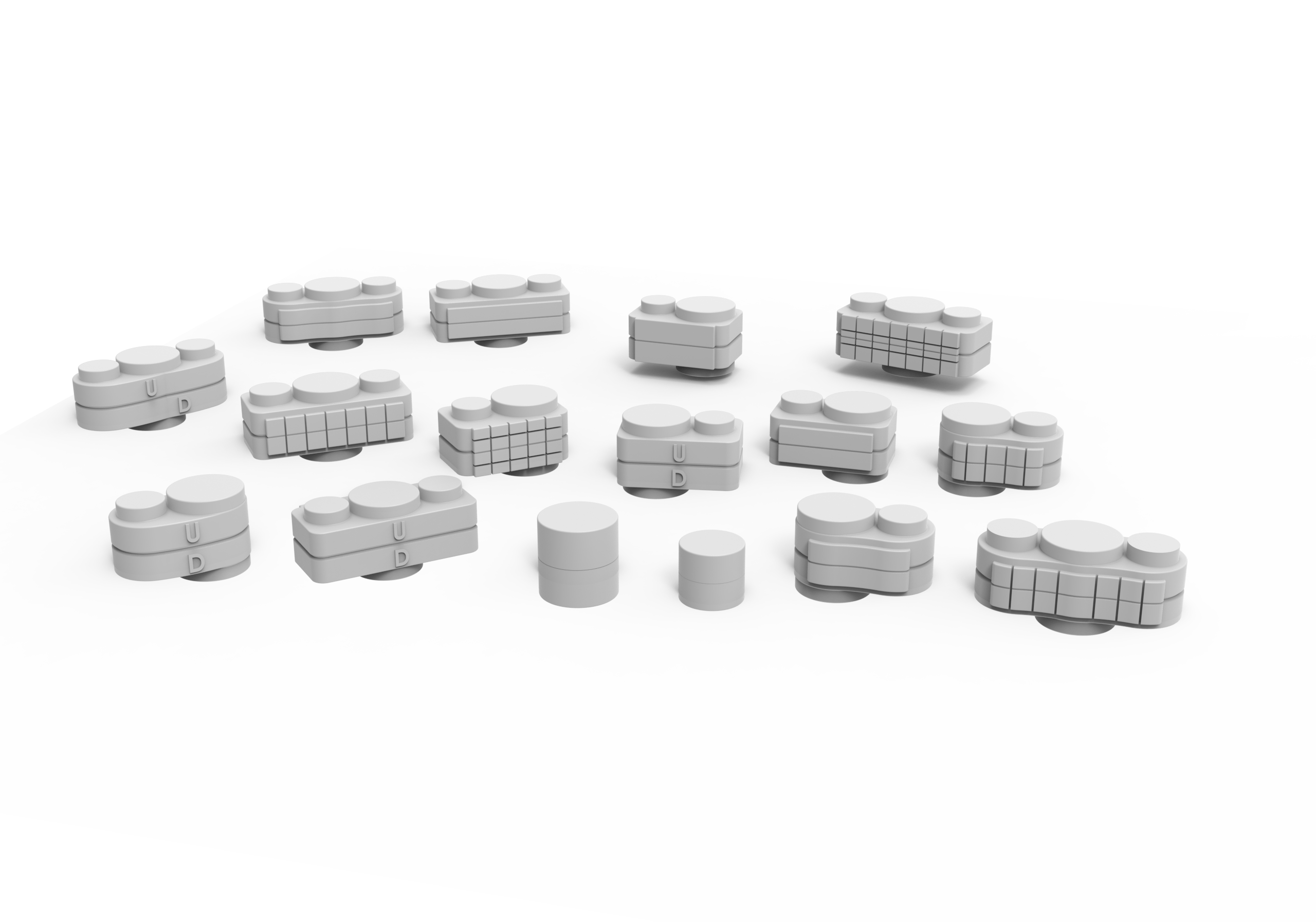

- 4x2mm version made for 4mm diameter and 2mm high magnets (16 pieces)

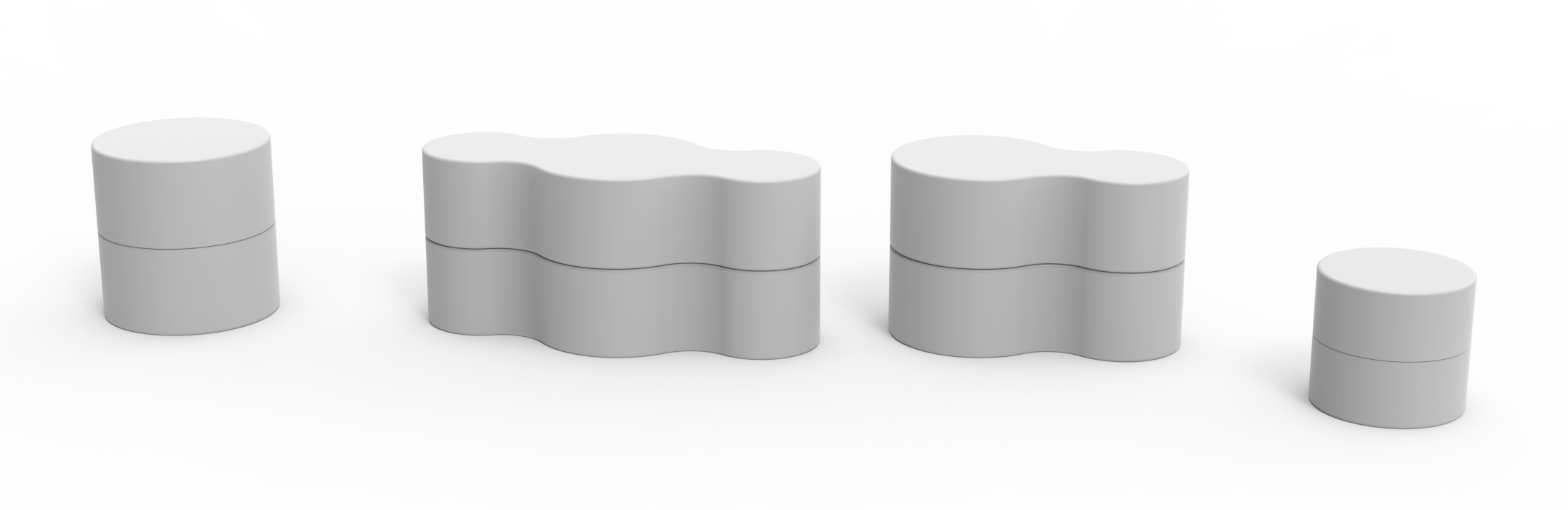

- 4x2mm Thin version made for 4mm diameter and 2mm high magnets (4 pieces) (4x2mm version with smallest possible volume for narrow spaces)

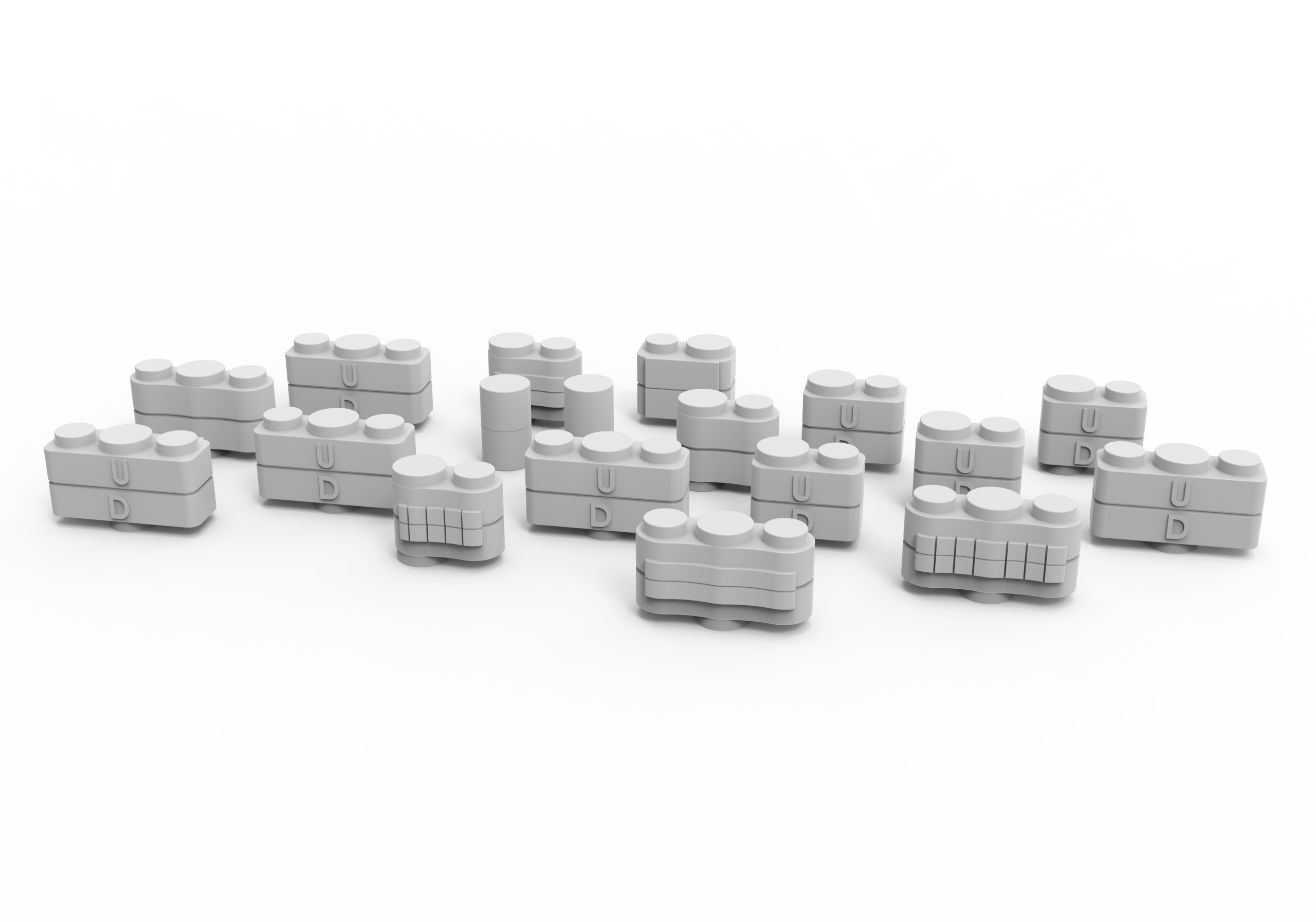

- 3x3mm version made for 3mm diameter and 3mm high magnets (18 pieces)

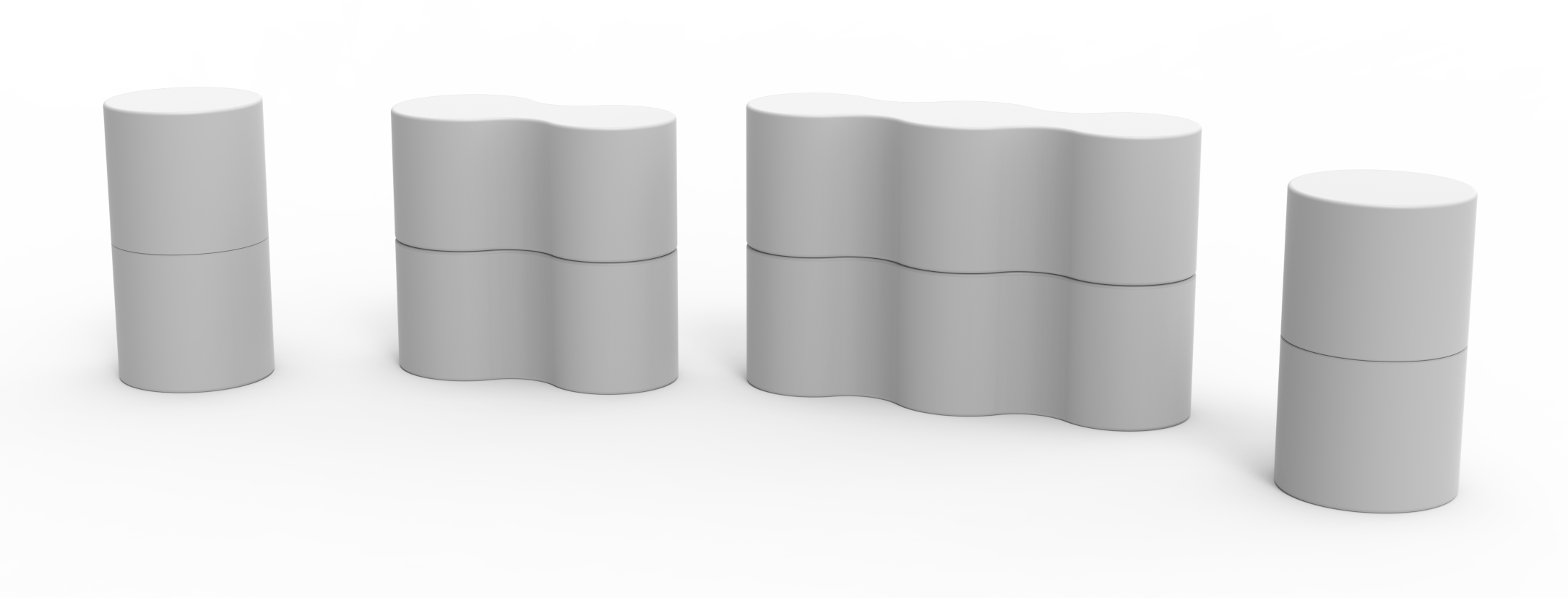

- 3x3mm Thin version made for 3mm diameter and 3mm high magnets (4 pieces) (3x3mm version with smallest possible volume for narrow spaces)
- Pack of 4x4mm, 4x2mm and 3x3mm
- Thin Pack of 4x4mm, 4x2mm and 3x3mm
- Just Magnets and Conenctors Pack (just cylinders for magnets and connectors from all three separate pack above 3x3mm, 4x2mm and 4x4mm separately and it has 6 parts)
Parts are designed to fit any needs. There are 18 for 4x4mm and 16 for 4x2mm different parts that you can see on the images. They have two male and female connectors and they use Φ4mm x 4mm high, Φ4 x 2mm high or Φ3 x 3 high Neodymium magnets. This magnet provides sufficient connection force for every need (different cases with different connection high) that you have and at the same time easy deconnection. All Male connectors have a letter D and all Female one letter U so you should not confuse them in your placement. With other words you have guidance (male and female features) and connection (magnet) at the same time.
Some of them are simple (just the two connectors as The Just Magnets and Conenctors Pack above) and some of them are designed for advanced users with extension for merging with the Surgical Guides or any other application. There are two types of merging extensions – Plain Surfaces and a Square Mesh so you can remove unnecessary parts and use just the shape that best matches your needs. Also there is just a magnet holder and male and female connection – (with outside look as a plain cylinders). Best way to use them is with Autodesk Meshmixer or some similar STL manipulation software.
There are two parts for every holder version marked as 1 and 2 for all versions. When you import them in a software please import them both at once (you can do them separately as well but it is better for both at once).

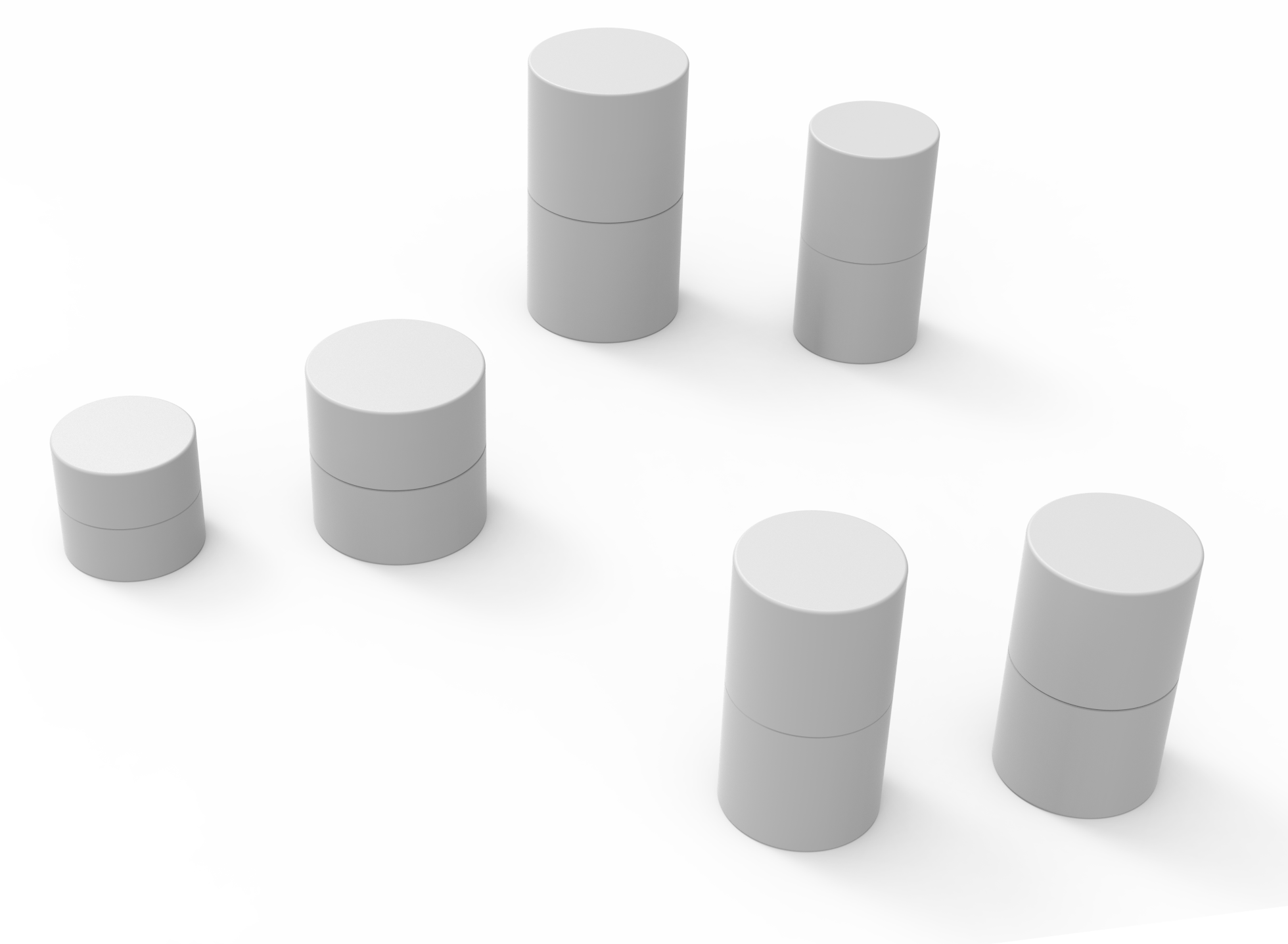

Just Magnets and Connectors Pack has the most simple version of all three and it consists of just cylinders for putting magnets inside as well as the connectors that go with them. Packs has three sets of above separate parts so one 3x3mm set (magnet and connector), one 4x2mm and one 4x4mm. In total six parts.
Pack of 4x4mm, 4x2mm and 3x3mm has three downloadable files which you need to download separately from the Thank you page.
In case you need additional shapes or some special one please let us know via our contact form or on [email protected] and we will gladly make them.
What you receive is a fully functional and tested product.
Note: Since the file is archive (.zip) and if you decide to download it from the email link some of the browsers can treat it as a dangerous one (especially Chrome). For that reason please right click on the link and then “save link as” option and when the downloading option shows at the bottom of the browser use option “Keep”.
